Reviewer: Srajan Ebaen
Financial Interests: click here
Source: Esoteric UX-1, Yamamoto YDA-0, Raysonic Audio CD228 [on review]
Preamp/Integrated: Esoteric C-03, ModWright DM 36.5, Yamamoto HA-02, Woo Audio Model 5, KingRex Headquarters HQ-1 [on review]
Amplifier:FirstWatt J2 [on review]
Speakers: Acoustic System Int. Tango R, Yamamoto YS-500 [on review]
Headphones: Sennheiser HD800, AudioTechnica ATH-W1000, BeyerDynamic DT880
Cables: Complete ASI Liveline loom
Stands: Acoustic System Int. HeartSong
Powerline conditioning: 2 x Walker Audio Velocitor S
Sundry accessories: Furutech RD-2 CD demagnetizer; Nanotech Nespa Pro; extensive use of Acoustic System Resonators, noise filters and phase inverters, Advanced Acoustics Orbis wall and corner traps
Room size: The sound platform is 3 x 4.5m with a 2-story slanted ceiling above; four steps below continue into an 8m long combined open kitchen, dining room and office, an area which widens to 5.2m with a 2.8m ceiling; the sound platform space is open to a 2nd story landing and, via spiral stair case, to a 3rd-floor studio; concrete floor, concrete and brick walls from a converted barn with no parallel walls; short-wall setup against 8-meter expanse and 2nd-story landing.
Review Component Retail: €1,190 |
 |
The man with the new tools
Like 007's nemesis with the golden gun, Sasa Cokic of Trafomatic Audio in Serbia's Mladenovac has grown more dangerous. Not to himself but to competitors. With his own valve gear, he always knew how to make good sound without asking a fortune. He's a true transformer expert who rolls his own for each application. The kind of fit 'n' finish he could achieve was simply handicapped. He still lacked a certain specialty experience. And tools. His ascent to WLM Acoustics' chief engineer at large —Sasa designs the circuits and builds all sub assemblies and transformers—created a small infusion of working capital. Sasa immediately invested that into a new dedicated assembly facility, hiring more personnel and acquiring his own CNC router. The Austrian connection with wood-work champ Hannes Frick & Co. rubbed off further. During a gruelling 3-day training course at the WLM facility in Sülz, Sasa and two of his key men were shown certain expert tricks on how to achieve the immaculate finish level WLM demanded for its new brand o WLM Acoustics f tube electronics.
Click on thumb nails of WLM Acoustics Minueta, Linea, Gamma and Allegra models for full-size images in new windows
|
|
| |
|
|

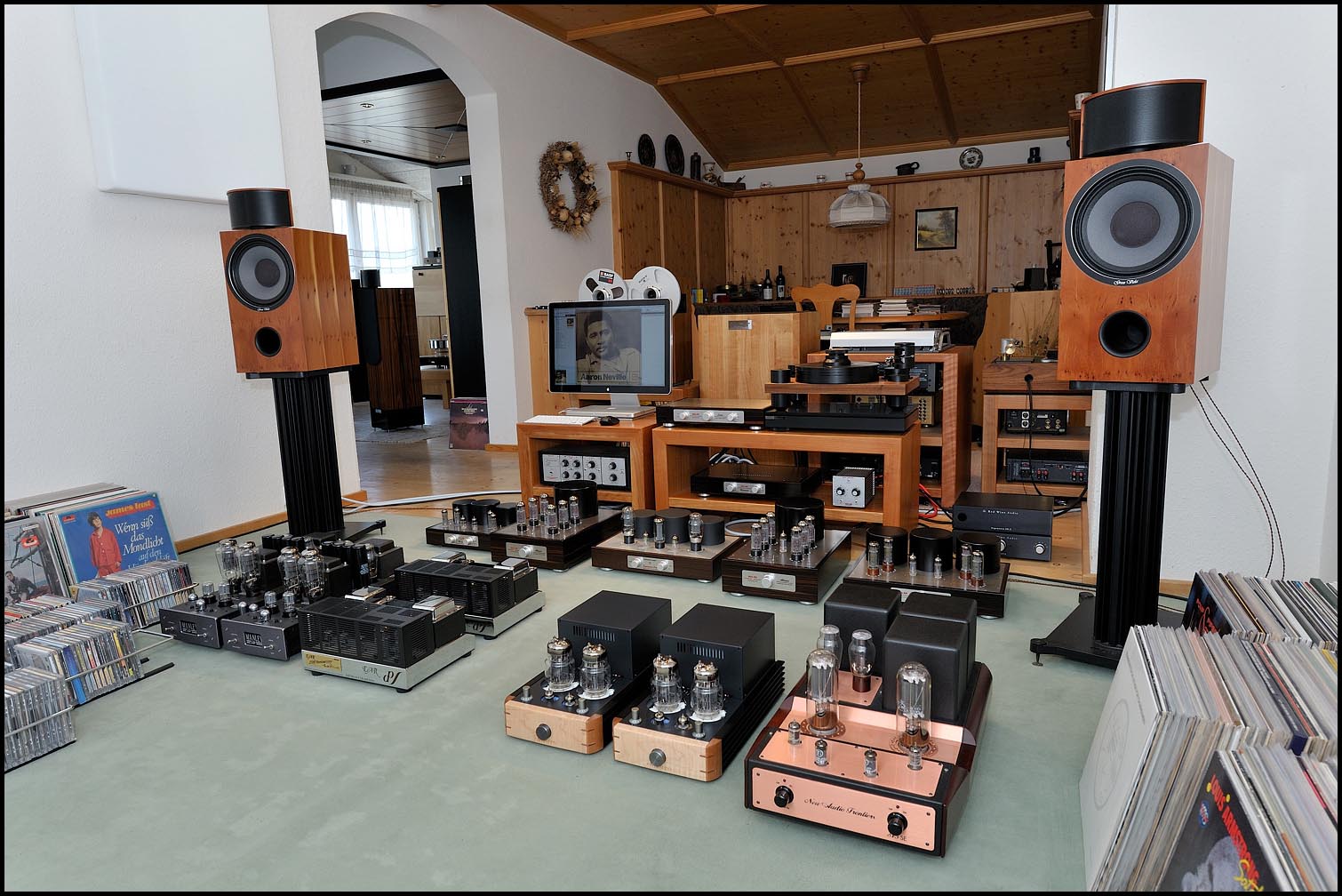

Once the WLM project had aced the proof-of-concept hurdle (it sounds terrific) and the bigger Austrian standards challenge (these designs can be built to perfect cosmetic spec in Serbia), the formal roll-out of an ambitious number of brand-new WLM models occurred at the HighEnd 2009 in Munich [below].
Ever restless, Sasa Cokic immediately applied his new tools and skills to face lift his own Trafomatic Audio models well before he set off for his first-ever German hifi show. That showing led to our first-ever Harvest Moon Award for personal achievement. The link gives the details and rationale behind this award.
|
 |
To document the progress for his own brand, Sasa next submitted these images of his existing but revamped Experience line. Credit for these photos goes to his Serbian friend Miodrag Jovic (e-mail credit on the enlargements of the Head One below).
|
 |
The visual tie-in with the WLM Acoustics models was deliberate. "For Hannes, I designed push-pull circuits around EL84s and EL34s exclusively to meet the criteria of his speaker models and tastes. At Trafomatic Audio, I already had 2A3 and 300B single-ended integrateds, 2A3 and parallel 300B monos, a headphone amp/preamp and transformer-coupled power filters. Adopting the same cosmetics we developed with Hannes made sense for those WLM clients, dealers and distributors who might prefer SET circuits and triodes. We do have one 6550 push/pull model called the Experience Elegance under our Trafomatic brand and we're currently working on a remote-controlled 45wpc integrated version for €3,300, €180 for the remote. Yet for the Experience Elegance amplifier, I retained the original front panel dress plate as you can see below. So there's zero overlap or competition with WLM. Rather, we have a nice strategic dovetailing to cover many different bases without doubling up."
|
 |
Those whose only hesitation with Trafomatic Audio in the past had to do with appearance no longer need to restrain themselves. In their price range, these models are now as bling and gussied up as good conservative taste would want.
|
 |
Naturally, looks aren't everything. The time had come to take another - um, look at the Experience line and report on sonics. As a headphone listener, I was curious about Trafomatic's Experience Head One. That's an unusually flexible tube-rectified design with multiple impedance taps for the ear speakers.
|
 |
It also runs a pair of 6S45P triodes with 1.8dB of negative feedback on the outputs while one EZ80(81) becomes the indirectly heated rectifier. Two inputs switched via rear-mounted toggle and twinned preouts for biamping or subwoofing turn this piece into a bona fide small preamp as well. The right four-pole control on the front selects from 30, 100 and 300-ohm loading for the headphone output or preamp duty in its last position. Max output power on the 1/4" socket is 300mW while preamp gain on the pre-outs is 18dB with a max voltage swing of +/-9V. Beyond the expected Trafomatic trannies and choke, parts include Rubicon electrolytics, an Alps potentiometer and metal-film resistors.
|
 |
Sasa's headphones of choice are the same AudioTechnica ATH-W1000s I favor. The noise floor of the new and revised Head One was optimized for high-sensitivity ear speakers of this caliber over the amp's first iteration when Sasa still listened to lesser headphones of lower sensitivity. My favorite in-the-head amp of course is Shigeki-San's Yamamoto HA-02. Fairly or not, that's what the Serbian would have to duke it out with. But the new KingRex HQ-1 Headquarters was in for review as well and Woo Audio's mighty Model 5 with EAT 300Bs was prepared to mete out punishment too. So the cards were quite stacked against the Serbian, particularly since I'd also acquired a pair of Sennheiser HD800s as my in-house über-phone examples.
|
|
|
| |
 |
 |
 |
|
