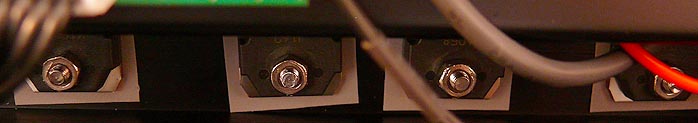

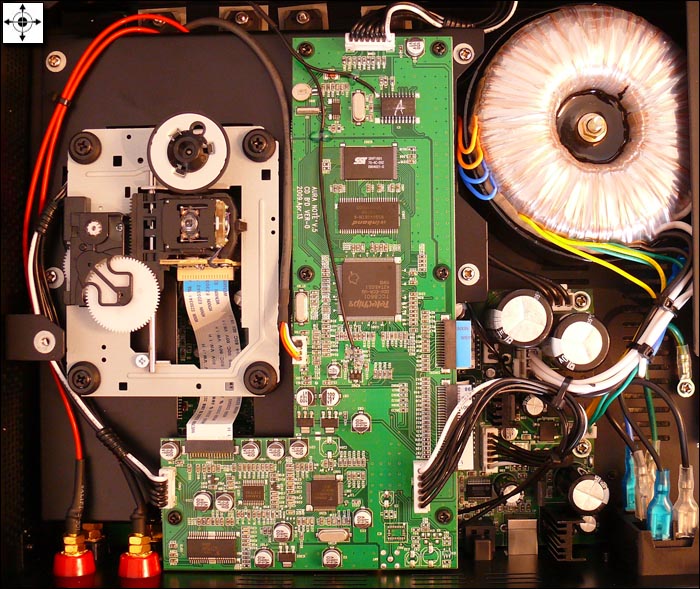

This is the entire circuitry. The class A/B Mosfet outputs are not visible from that perspective. One might hence think space-saving class D amp modules instead. Not. The next image sliver shows the four Hitachi transistors which even then remain partially hidden from view.

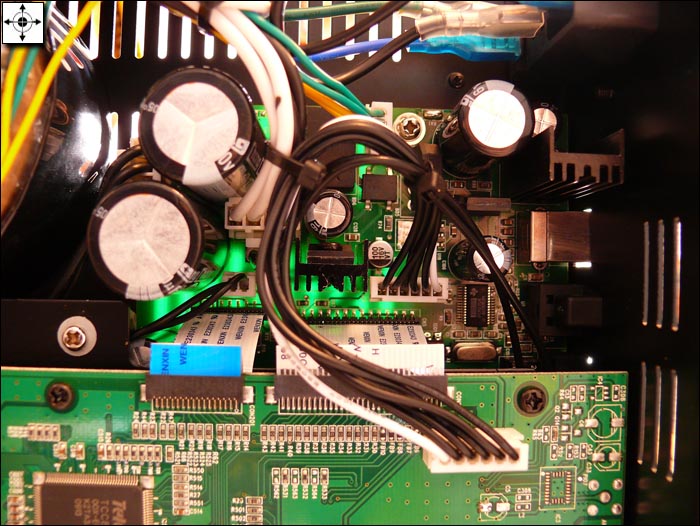

Here is the power supply section.




The digital board.

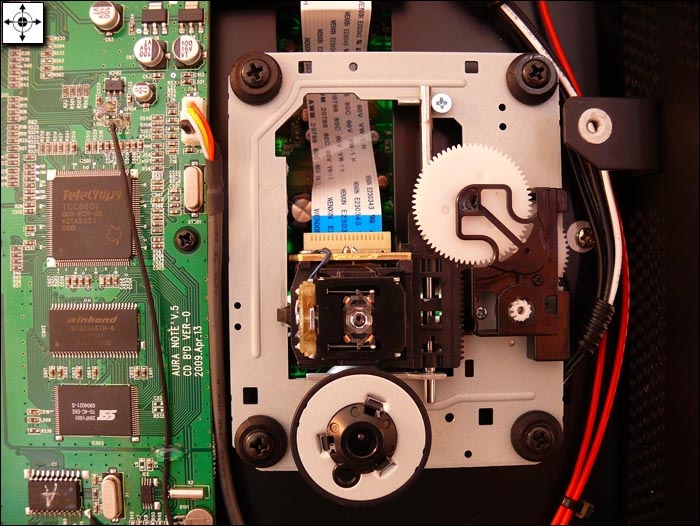

The Sanyo transport with Toshiba laser.

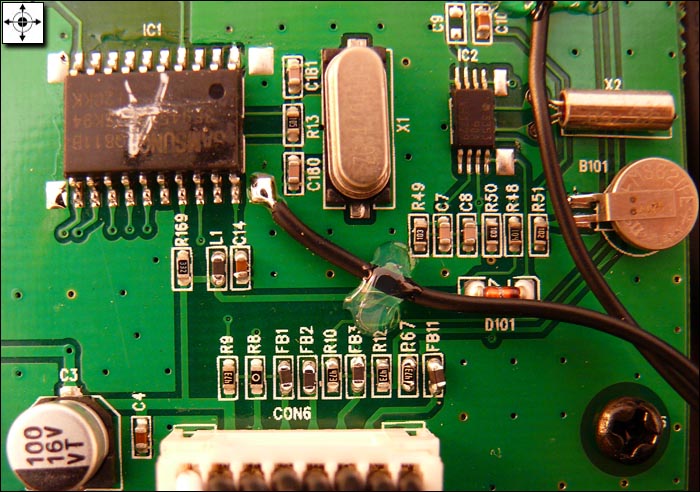

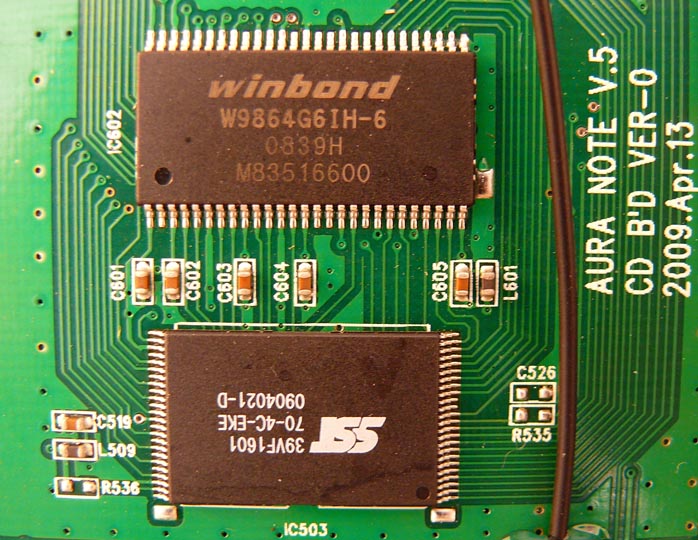

Close-up of IC.

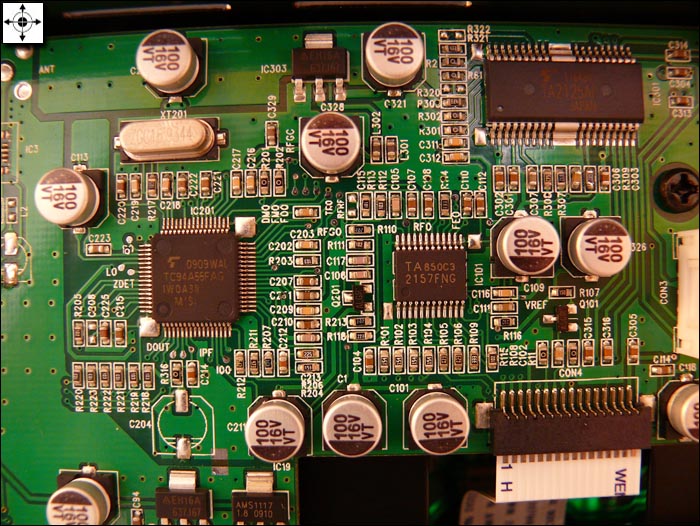

Ditto.

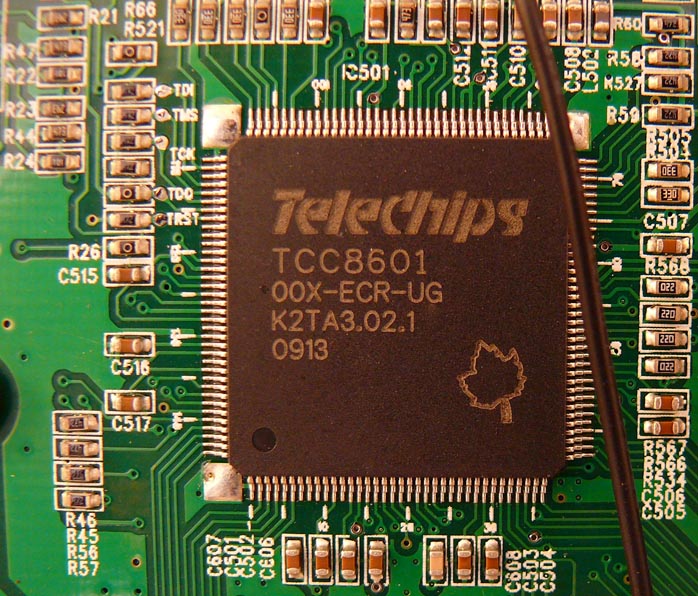

Ditto.
